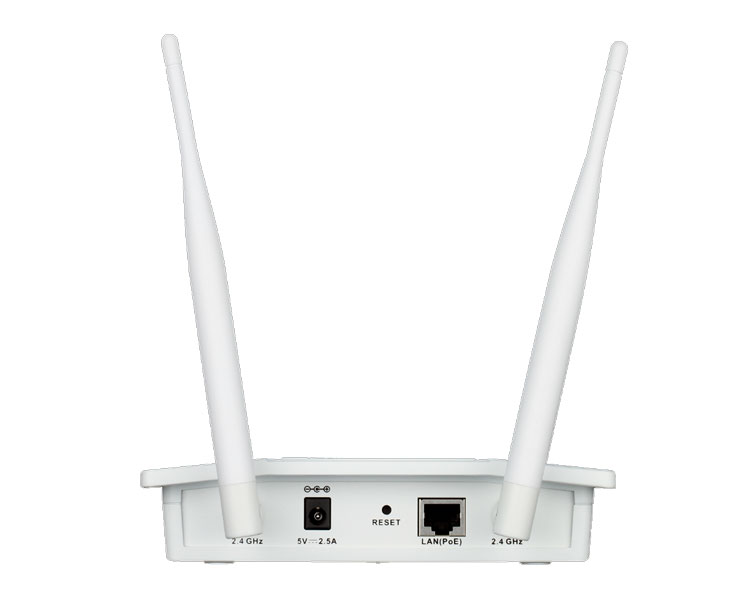

• 802.11n connectivity for increased network capacity
• Up to 300 Mbps wireless speeds
• White rugged metal plenum-rated chassis to meet fire regulations
• Four products in one: Access Point, Wireless Client, WDS, WDS with AP
• 1 Gigabit Ethernet port for the fastest wired speeds
• Power over Ethernet (PoE) support for convenient installation
• Multiple SSID for wireless network segmentation
• AP Array feature to help IT administrators quickly deploy a multi-point wireless network
• Load Balancing function to optimise high network traffic volume and redundancy
• VLAN support
• WMM™ (Wireless Multi Media) to prioritise audio, video and voice applications
• Enhanced security with RADIUS support
• High power radio design

Standards: IEEE 802.11n / IEEE 802.11g/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3u/ IEEE 802.3
Management: Telnet - Secure (SSH) Telnet/ Web Browser Interface/HTTP - Secure HTTP (HTTPS)/SNMP Support/D-View Module - Private MIB/AP Manager II/AP Array
Security: WPA™ - Personal/WPA2™ - Enterprise/WPA2™ - Personal/WPA2™ - Enterprise/64/128-bit WEP/SSID Broadcast Disable/MAC Address Access Control/Rogue AP Detection

VLAN: 802.1q VLAN support
SSID Support: Multiple (up to 8 SSID)

Quality of Service (QoS)

• 4 Priority Queues
• WMM Wireless Priority

Wireless Frequency Range: 2.4 GHz to 2.4835 GHz

Operating modes

• Access Point (AP)
• WDS with AP
• WDS/Bridge (No AP Broadcast)
• Wireless Client

Dipole Antenna Gain: 5 dBi @ 2.4 GHz
Maximum Transmit Output Power: FCC : 26 dBm / ETSI : 14 dBm (Dual Chain)

Maximum Power Consumption

• 9 watts with PoE
• 8 watts without PoE

Power Supply: 5 V/2.5 A or PoE

Weight: 768 g.

Dimensions (W x H x D): 166 x 188 x 37 mm
